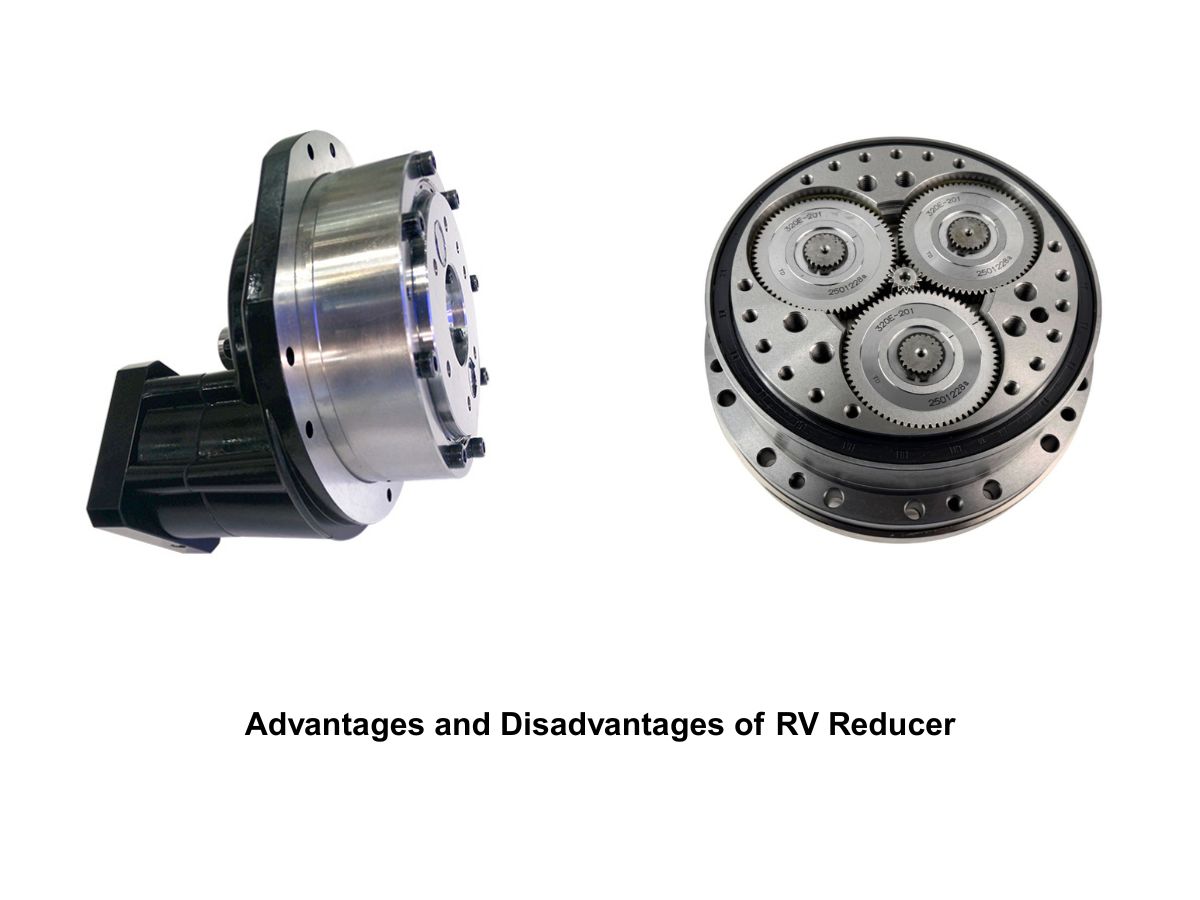

Advantages and Disadvantages of RV Reducer

What is an RV Reducer?

RV stands for Rotary Vector. It was developed by Nabtesco in the 1980s as an optimized design based on the cycloidal pinwheel reducer.

Advantages of RV Reducers

1. Wide Reduction Ratio Range

RV reducers can achieve a wide range of gear ratios, typically offering high reduction ratios. This makes them suitable for various operating conditions that require precise speed control and torque output.

2. High Torsional Rigidity

The output mechanism adopts a double-supported planetary carrier. A rigid large disc on the carrier’s left end is directly connected to the load via bolts.

Compared with conventional cycloidal reducers, this structure provides:

• Significantly higher torsional rigidity

• Minimal elastic backlash under rated torque

• Stable transmission accuracy and excellent dynamic response

3. High Transmission Efficiency

RV reducers feature relatively low energy loss during power transmission, enabling efficient conversion of input energy into mechanical output. This helps improve energy utilization and reduce operating costs.

4. Precision and Stability

Stable Accuracy

With proper design and high manufacturing/assembly precision, RV reducers can achieve:

• High accuracy

• Low backlash

Over long-term operation, their accuracy is less affected by wear or temperature changes, ensuring:

• High positioning accuracy

• Excellent repeatability

This makes them ideal for applications such as robots and CNC machines.

• Smooth Operation

Thanks to their special transmission structure and meshing method:

• Low vibration

• Low noise

This ensures smooth operation, reduces noise pollution, and helps extend equipment lifespan.

5. Load Capacity and Protection

High torque capacity allows RV reducers to handle heavy loads effectively

Under abnormal conditions (e.g., overload), they can withstand high torque and help protect the motor from damage

Disadvantages of RV Reducers

1. Limitations in Load Capacity

Sliding Friction in Pin Gear Mechanism

Although most transmission components use rolling contact, the interaction between the pin gear and pin housing is primarily sliding friction.

This behavior is similar to sliding bearings, which are typically more suitable for:

• High-speed

• Light-load conditions

This characteristic imposes certain limitations on the load capacity of RV reducers.

2. Manufacturing Complexity

High Precision Requirements

In real-world applications, RV reducers often undergo repeated start-stop cycles and precise positioning.

To maintain accuracy and service life:

Pin gears, housings, and pins require extremely high machining precision

Material selection and manufacturing processes must meet strict standards

This significantly increases production cost.

Difficult Production Process

RV reducers have a complex structure, with strict requirements for:

Component machining accuracy

Assembly precision

They require:

• Advanced manufacturing equipment

• Sophisticated technology

• Strict quality control

As a result, producing high-precision RV reducers is technically challenging.

RV reducers offer high precision, rigidity, and reliability, making them ideal for high-end applications such as robotics. However, their complex structure and demanding manufacturing requirements lead to higher costs and production difficulty.
